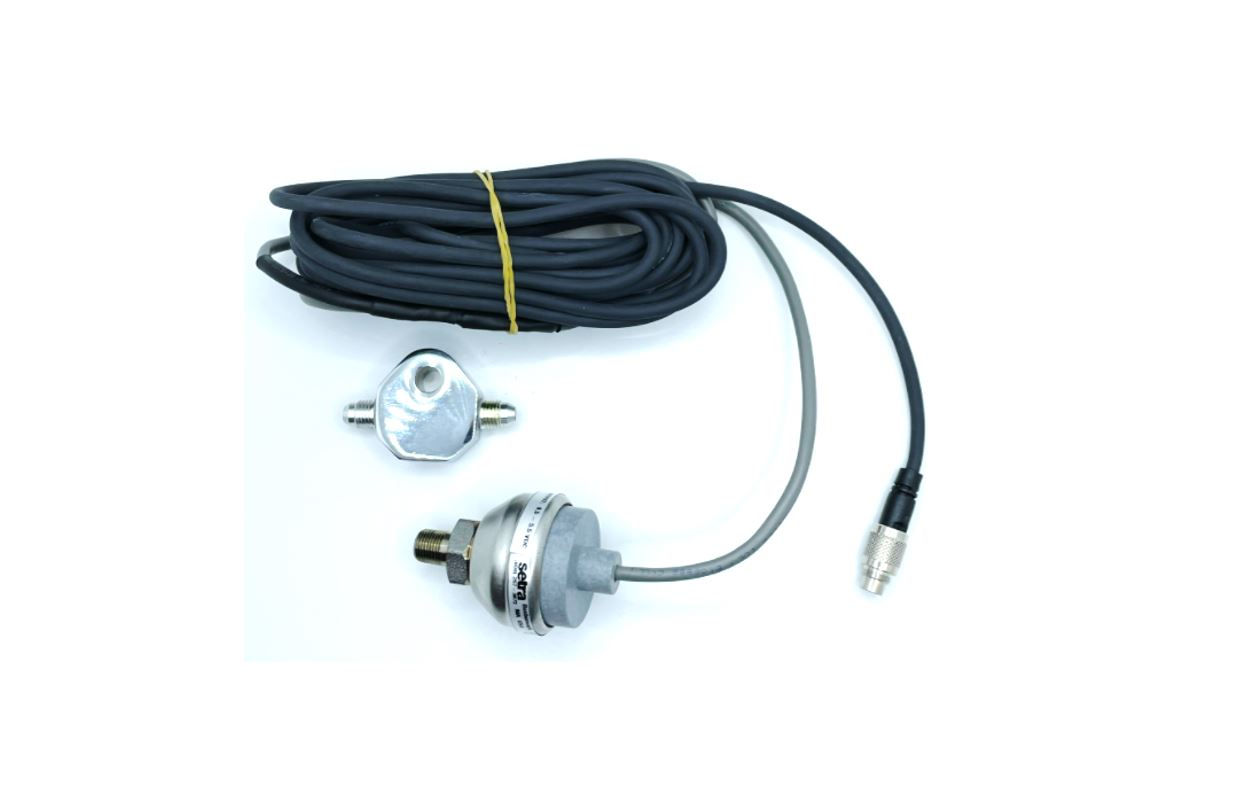

0-5000 PSi Brake Pressure Sensor

0-5000 PSi Brake Pressure Sensor


Pressure Transducer; 0-5000 PSIG; 1/8"NPT Male; 0.5-5.5 VDC; 2 Foot Cable


The Model 209 pressure sensor is designed for Industrial and OEM customers who require high performance, reliability and versatility at an affordable price. It offers exceptional ±0.25% FS accuracy with pressure ranges from 1 PSI up to 10,000 PSI to meet a multitude of demanding applications. The 209 features all stainless steel wetted materials and offers many pressure and electrical connections to satisfy challenging installation requirements. The 209 features a patented overpressure stop to protect the sensor against unexpected spikes or in high pulsation applications.


• High Overpressure Option Available on Select Ranges

• Operates Over a Wide Temperature Band

• Compatible w/ a Variety of Gases & Liquids

• Operates on Low Cost Unregulated DC Power

• Suitable For High Shock & Vibration Applications

• No Seals or O-Rings to Cause Leakage

• No Brazed Joints Susceptible to Corrosion Problems

• CE & RoHS Compliant

  • Patch Cable Style

    Please specify the patch cable style (712 or 719, or other), on checkout. Custom patch cables available upon request.

    *Brake pressure in-line fitting sold seperatley
