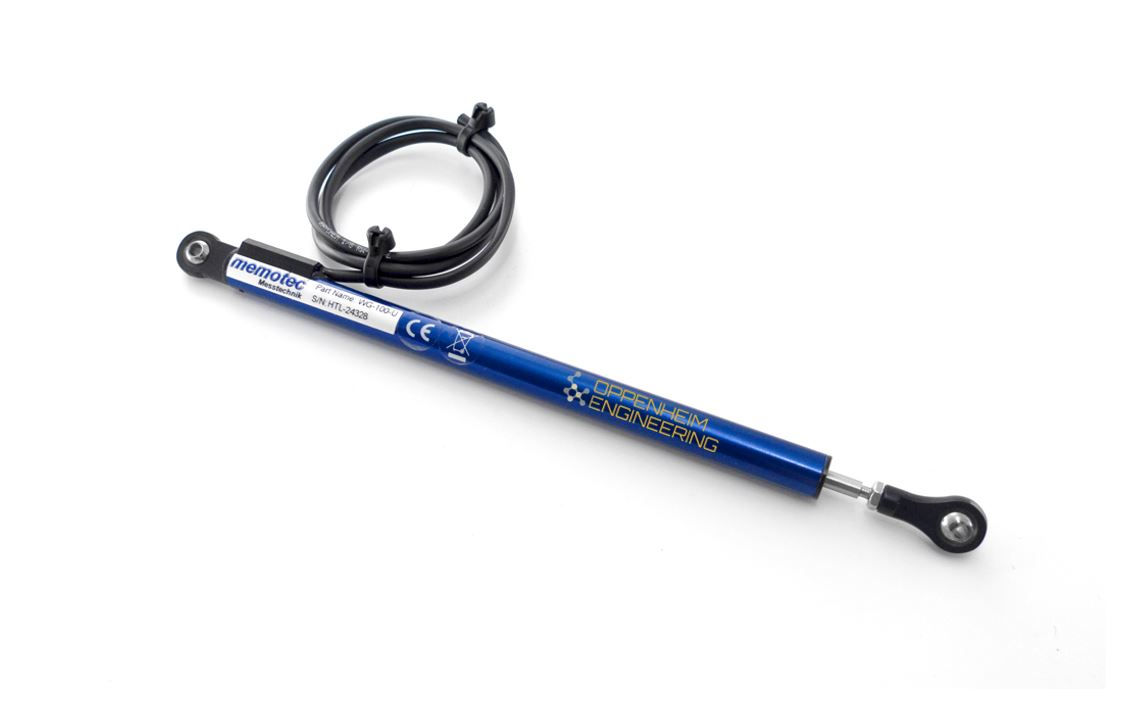

AiM Linear Travel Sensor

AiM Linear Travel Sensor

C$399.00Price

Linear Travel Potentiometers, AKA Linear Variable Displacement Transducers (LVDTs) or position sensors, can be used to measure virtually any linear motion or position. Monitor shock and suspension travel, ride height at speed, throttle position -- even wing or spoiler deflection at speed. The size listed is the stroke (travel) length. Mounting eyelets are 5mm (3/16") diameter to accept a #10 screw. Body OD 1/2" (13mm). Color may vary from photo.



Stroke

Part Number

Minimum Length

Maximum Length

50mm (1.97")

X05SNLP050

193mm (7.60")

253mm (9.96")

75mm (2.95")

X05SNLP075

218mm (8.58")

293mm (11.54")

100mm (3.93")

X05SNLP100

243mm (9.57")

343mm (13.50")

125mm (4.92”)

X05SNLP125

268mm (10.55”)

393mm (15.47”)

150mm (5.91")

X05SNLP150

293mm (11.50")

443mm (17.44")

175mm (6.89”)

X05SNLP175

318mm (12.52”)

493mm (19.41”)

200mm (7.87")

X05SNLP200

343mm (13.50")

543mm (21.38")

250mm (9.84”)

X05SNLP250

393mm (15.47”)

610mm (24.01”)

350mm (13.78”)

X05SNLP350

493mm (19.41”)

760mm (29.93”)



Lengths are measured from eyelet center - center.

These sensors have the 719 (four-pin plastic push-on type) connector. Use a  719-719 Patch Cable to connect to any AiM MX-series dash (MXm, MXL2 MXS, MXP, MXG) and Strada Dashes, or EVO5 loggers. The EVO4 / EVO4S loggers, and Channel Expansion Hub, MyChron Expansion require a 712-719 Adapter Cable.
